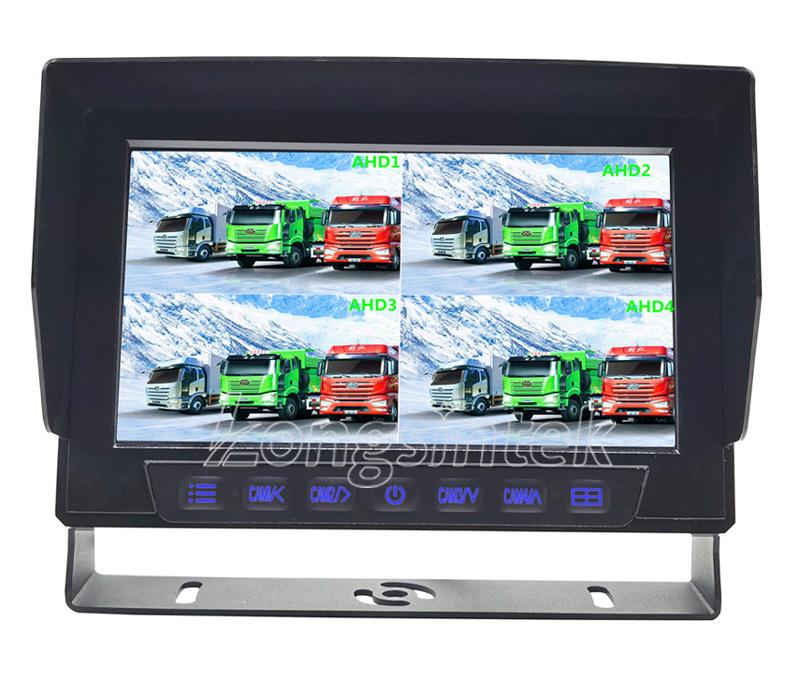

7" Inch AHD Quad Waterproof Monitor
Resolution:1024*R.G.B*600   Back Light Luminance：LED，500-650cd/㎡
View angle:L/R:85°,UP:85°,down:85° degree
Four-channel AHD video input,Full  images/2 images/3images/4 images adjustable ,Support AHD720P/960P/1080P and CVBS multi-video hybrid input
Twelve segmentation modes, cut into two three or four pictures to display H-type, each picture can be presented separately
Reference point and time control for reverse gear setting
with light sensor receiver,can adjust screen brightness automatically day & night
System:PAL&NTSC auto-switching
Power supply:   Automobile storage battery (12-326V)  ，12V output
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃;Storage temperature:-30℃ to 80℃
Waterproof grade: IP69K; with shock resistance of：5.9G
Apearance color:Ferrous metal
standard：Metal U type bracket,  Detachable sunshade
RCA/ 4pin connector (Optional)
